Incamake

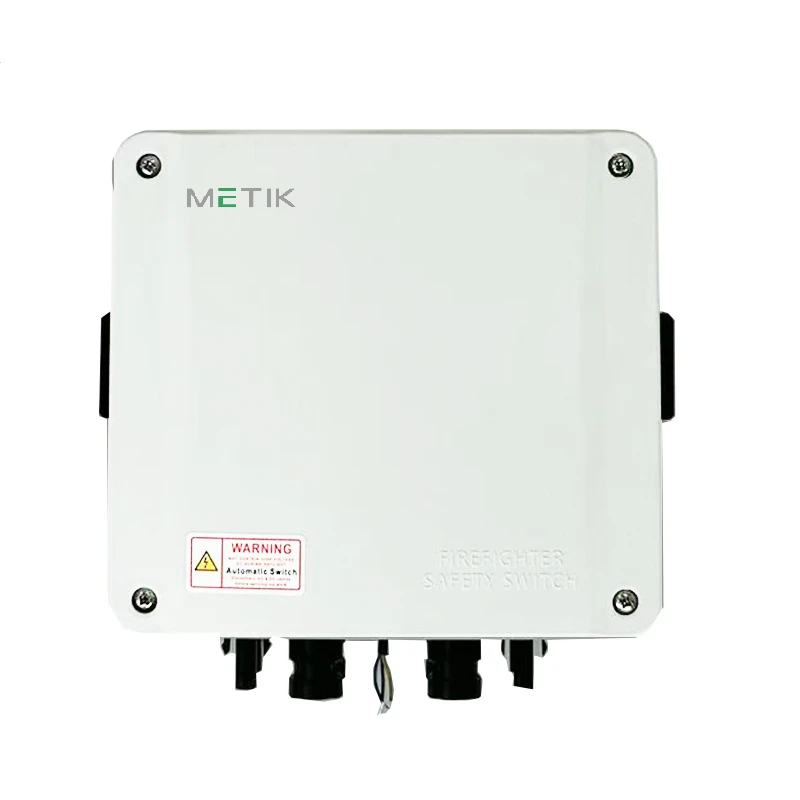

Igikoresho ca Fireman Switch ni igikoresho kidasanzwe gikoreshwa cane -co gucapura DC gishizwe hafi y’ibarabara ry’izuba ryo hejuru y’urusengero. Intumbero yayo nyamukuru ni ugutanga ukwitandukanya kw’umuyagankuba kwikora canke gukoreshwa n’amaboko kw’imirongo y’ubuzima y’umuyagankuba w’umuriro munini (DC) uca mu nyubakwa mu gihe c’ivyihutirwa.
Ibisobanuro vy'ubuhinga
|
Parametere |
Ibisobanuro |
|
Inguvu nyinshi cane |
1000V / 1500V DC |
|
Igiharuro c'ibikorwa vy'ubu |
16A / 32A / 40A / 55A |
|
Imiterere y'igiti |
2P/4P/4B (infashanyo ya MPPT ibiri) |
|
Ukwikingira n'Igipimo c'Umuvuduko |
Uimp 8kV |
|
Ubuzima bw'ubuhinga |
>Ibikorwa 10.000 |
|
Ukwihangana kw'umuyagankuba |
>1,500 zuzuye-ugucagura inzinguzingu |
|
Gucungera amashanyarazi |
100-240V AC, 50/60Hz |
Ibirango vy'ingenzi
Uguzimangana kw'umuyagankuba:Ivyumba vy’uguzimya umuriro vy’ubuhinga bwa magnétique-bifise uburenganzira bwo guhagarika umuriro w’umuyagankuba mu rwego rw’ikoreshwa rya IEC 60947-3, bikagabanya ugusenyuka kw’ibinyabuzima kugira ngo bigumye bifise ibipimo vy’uguhangana n’ibinyabuzima vy’igihe kirekire.
Ubushuhe burengeye -Ubutungane bw'imiterere:Uruzitiro rwa Polycarbonate rugumya uguhinduka kw'ubuhinga n'inkomezi z'ugutera munsi y'imishwarara y'izuba yo hejuru y'urusengero gushika ku rugero rwa degre 85 .
Impeshi-Ikoreshwa n'ubuhinga:Moteri-ikoreshwa n'ububiko bw'impuzu irekura mu buryo bw'ubuhinga mu 150ms iyo AC igenzura ubushobozi butakaye, ikora ukwitandukanya kw'umubiri DC kugira ngo igere ku mategeko yo guhagarika vuba kure.
IP66 Uruzitiro Rukingijwe rufise Uruzitiro Rushizwemwo:UV-inzu ihamye ifise umuvuduko-ungana n’umuvuduko w’amazi kugira ngo ikureho ivyuma biva mu mubiri biva ku guhinduka kw’ubushuhe bw’umurango ataco bihungabanya ku bijanye n’uburinzi bw’injira bwa IP66.
Gukora neza
Iteraniro ryikoresha n'ubugenzuzi bw'uburyo
Imirongo y’ibikorwa ikoresha ibikoresho vy’ugufatanya vy’umuvuduko -bikoresheje ubuhinga bwa none kugira ngo inguvu zo gufatanya zibe zimwe mu bihimba vyose vy’imibumbe.
Igenzura ry'ukwinjira n'ubudahangarwa
Igikoresho cose gica mu kigeragezo c’umuvuduko-gutonyanga kugira ngo kigenzure ubutungane bw’ikidodo ca IP66 imbere y’uko gipakirwa.
Igerageza ry'umuyagankuba
Ivyo bikoresho vyose bica mu isuzuma ry’amaso (AOI) ry’ubuhinga bwa elegitoronike, hanyuma hakurikirwa ikigeragezo c’ugukingira umuyagankuba w’amashanyarazi 3.5kV kugira ngo hasuzumwe ubushobozi bwo guhangana n’amashanyarazi.
AQL 0.4 Igenzura n'Igerageza ry'Ibidukikije
Urna ivyatsi vy’umukara nibh. Umubare wose w’ubuzima gusa ni magna.
Amajambo y'ubucuruzi
Amahitamwo ya MOQ & OEM:Igitigiri gitoyi c’amategeko ni 200 ku bigereranyo bimenyerewe; n’imirongo ngenderwako y’imiterere y’ibintu n’imiterere y’ibintu bisaba nibura ibice 1.000.
ISTA-3A na ISPM-15 Gupfunyika:Irungikwa mu makarito y’amabuye y’agaciro abiri-uruhome 5-afise ivyuma vy’amabuye y’agaciro vy’i HDPE, bishizwe ku bipande vy’ibiti vy’ubushuhe, vy’umuriro.
Gutunganya neza ibikoresho:Igikoresho gisanzwe c’uburemere bwa 20GP gishobora kwakira ibintu bishika 5.400, bikaba bituma umubare w’ibintu ukoreshwa neza kandi bikagabanya igiciro co gutwara ibintu mu kiyaga.
Igihe co kurongora:Igice ca mbere kizoheza mu misi 25 y'akazi inyuma y'-ugushiramwo; amategeko y’amasezerano y’uburengeti asubiramwo yoherejwe mu misi 10 y’akazi.
Incoterms zishigikiwe:Amasezerano yo gutanga FOB, CIF, na DDP araboneka.
Inyuma-ugushigikira ugurisha
Imyaka 5 y'Igarantiya:Ipfuka 100% gusubirira ibibazo vy’ubuhinga canke vy’amashanyarazi bikora nabi hakurikijwe imirongo ngenderwako y’imikorere.
Amasaha 24 y'ubuhinga SLA:Ivyerekeye ubuhinga n’ubuhinga -vyerekeye ukuntu uruzitiro-bihuye biraronka inyishu y’ubuhinga itegekanijwe iva ku mugwi w’ubushakashatsi n’iterambere mu masaha 24.
Ivyitegererezo vy'isuzuma ry'ubuhinga:Ivyuma vy'isuzuma biriho kugira ngo umuntu ashobore gupima ubushobozi bwo gukora muri laboratwari no kugerageza ko inverter-ihuye.
Imyaka 15 Ibice vy'Ibikoresho Biboneka:Ivyemezo vy'ugukomeza gutanga uburyo nyabwo bw'ubuhinga-ibice vy'ubuhinga n'ibice vy'imbere inyuma y'ugugura.
Imbere y'igihe Porotokole yo gusubirira:Iyo hasuzumwe ikintu gifise akaga (kirenze 0.1% c'igipimo c'ukunanirwa kw'itongo), ibikoresho bisubirira bica bijanwa mu kirere-ubwo nyene kugira ngo bigabanye igihe co guhagarara kw'aho hantu.
IBIBAZO bibazwa
Ikibazo: Ni ivyemezo ibihe vy’umutekano mpuzamakungu Fireman Switch yubahiriza?
I: Igikoresho ca Fireman Switch cakozwe kandi kigeragezwa ku rugero rw’ikoreshwa rya IEC 60947-3 DC ku bikorwa vyo gucapura amashanyarazi, gipfuka amashanyarazi agera kuri 1000V DC na 1500V DC. Ivyandiko vy’ikimenyetso ca CE na raporo z’igerageza ry’ubwoko bwa 8kV n’uburinzi bw’injira ya IP66 biraboneka kugira ngo umuntu abikureko iyo umugambi wiyandikishije.
Ikibazo: Mbega iyo switch yoshobora gushirwa mu bikoresho vy’izuba biriho?
A: Ego. Iyi switch ifasha 2P na 4P pole configurations n’ubushobozi bwo kwinjiza kabiri MPPT, bikaba bituma ihuye n’inyubako nyinshi z’inverter y’imirongo iva ku bahinga nka SMA, Huawei, na Fronius mu 1000V DC na 1500V DC system system.
Ikibazo: Ni gute arc suppression igenzurwa mu bihe vy’ibikorwa vy’ukuri?
I: Arc suppression yemezwa biciye ku IEC 60947-3 ukwihangana kugerageza ku giciro c'ubu (16A gushika 55A) n'umuriro w'umuzigo wuzuye, kwemeza ko umuriro w'umuyagankuba -ivyumba vy'ukuzimya bishika ku bisabwa Birengeye canke bingana n'umuzigo wuzuye-mainingn0. mu gihe c’ibisobanuro.
Ikibazo: Bigenda gute iyo amashanyarazi y’ubugenzuzi apfuye?
I: Iyo ubushobozi bwo kugenzura AC (100–240V) butakaye, igikoresho gikoreshwa n’umuriro gikoreshwa n’impuzu irarekura mu kiringo c’iminota 150 maze kigafungura mu buryo bw’umubiri amakontakte ya DC ata tegeko ry’ubuhinga bwa none -umugambi ushobora guhungabana uhuye n’ingingo ya NEC 2010.t shup rapid in129.
Ikibazo: Ni gute ukwizigirwa kw’igihe kirekire-kuboneka mu bice vyose vy’ibikorwa?
I: Igitero cose c’ibikorwa gisuzumwa hakurikijwe ingingo ngenderwako za ISO 2859-1 AQL 0.4, n’ibigereranyo vy’imburakimazi bikoreshwa mu guhindura ubushuhe kuva kuri -40℃gushika kuri +85℃n’igerageza ry’ubushobozi bw’umuyagankuba 3.5kV AC ku 100% vy’ibice.
Ikibazo: Mbega iyo switch irabereye ku bidukikije bikomeye cane vyo hejuru y’urusengero?
A: Ego. IP66-ipfutse polycarbonate enclosure ishobora guhangana n’ubushuhe buhoraho bushika kuri 85 degrees iyo izuba rikoresheje imishwarara, kandi umuvuduko w’uruzitiro rw’uruzitiro ruringaniza umuvuduko w’amazi ushobora gukingira ubushuhe bwo mu mutima buhinduka buri musi ataco buhungabanya uburinzi bwo kwinjira.
Ikibazo: Ni ubuhe bwoko bwo gusanasana busabwa inyuma yo gushiramwo?
I: Nta gukora igikorwa co mu mutima gikenewe. Ivyo gusa bikenewe ni ugusuzuma buri mwaka umuvuduko w’iherezo (gukomeza gushika ku 2,5 Nm zivugwa ku gitabu co gushiramwo) no kugerageza ibikorwa vy’ikimenyetso c’urugendo rwo kure kugira ngo bemeze ko gikora 150ms.
Ikibazo: Ico gikoresho coba gishobora gukoreshwa mu bikoresho vy’amashanyarazi vyihuta guhagarara?
A: Ego. Iyo ikoreshejwe nk’umuyagankuba w’urugero rwa array-gutangura gufunga vuba kandi ihujwe n’ikimenyetso co kugenzura AC kiva ku inverter yubahiriza amategeko, umuyagankuba ushitsa ibisabwa vyo gufunga vuba vya NEC 2017 §690.12 ku bikoresho bishizwe ku nyubakwa canke mu nyubakwa.
Ikibazo: Ni gute ukuntu ibintu bihuye mu mategeko menshi?
I: Ku mategeko manini, igenzura ry’imigwi ya AQL 0.4 ritanga ivyerekanwa bikomeye mu mibare-ku rwego rwo kwemera, ivyerekanwa vy’ibice 5.000 vyosaba ko ata n’umwe afise utunenge mu citegererezo c’ibice 200 kugira ngo bice, bikaba vyemeza ko uburyo bwo gusohoka buhambaye cane.
Ikibazo: Ni ibihe bintu nyamukuru bishobora gutuma iyo sisitemu idakora neza?
I: Ibintu bitatu vy’intango vy’ugusenyuka kw’imiterere ni ugusudira mu gihe c’umuriro mwinshi w’i DC, gutera umuriro udagenzurwa mu gihe c’ugucagura kw’umuzigo, n’ukwigungira ukwawe kudatunganye bitewe n’ugusenyuka kw’umurongo w’ubugenzuzi.
